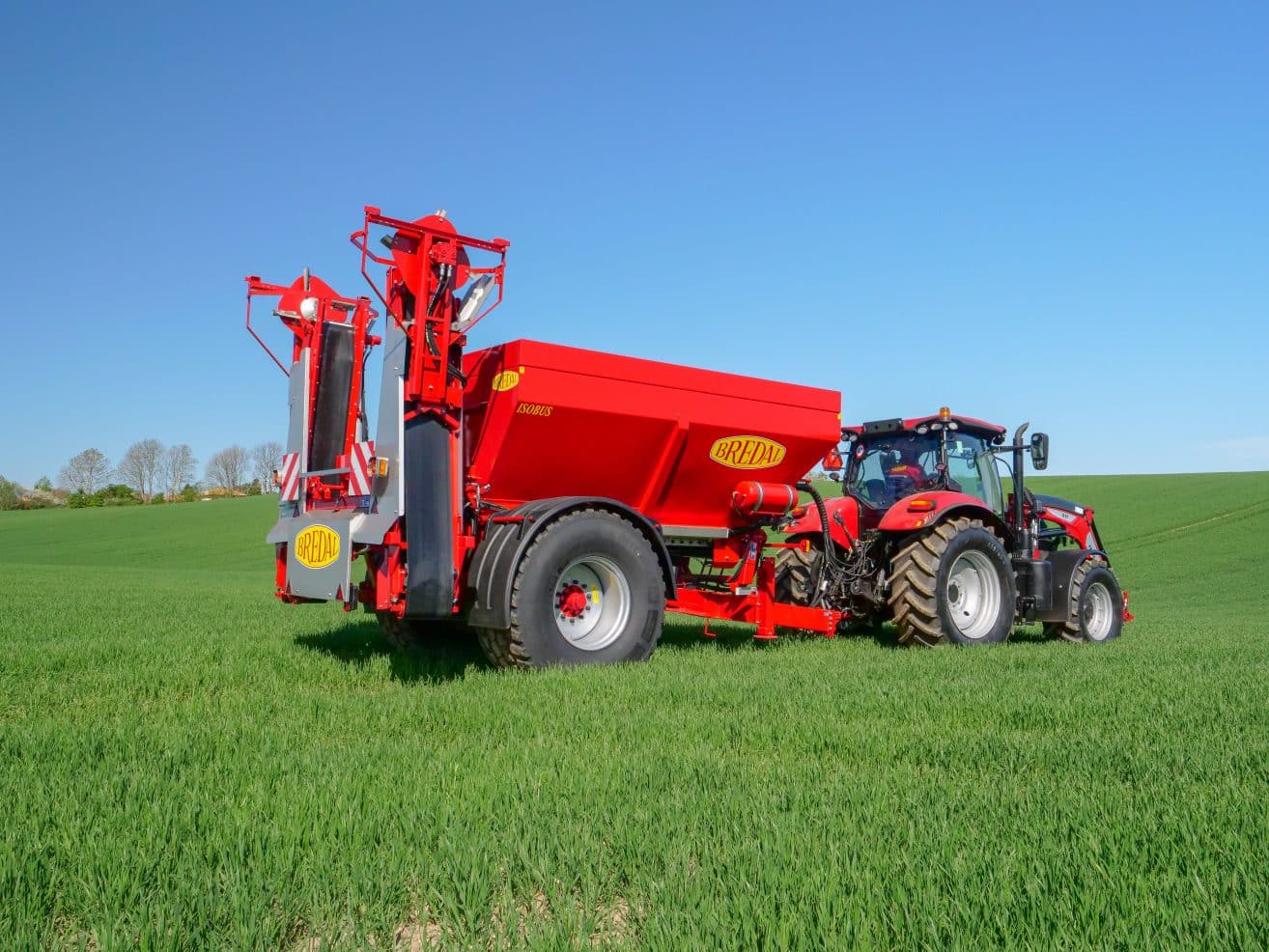

Bredal Kalkspridare

K-serien och K-XE kalkspridare.

K-Serien med 3,5 – 19 kubik och 12-36 meter spridning.

K-XE-serien med upp till 48 meters spridning

Kategorier: Lantbruksmaskiner, Växtskydd & Gödselspridare
Gör en intresseanmälan

eller

Kontakta en säljare nära dig

Technical data:


K45 K65 K85 K105
Capacity 3.50 m3 5.00 m3 6.60 m3 9.00 m3
with hopper extension 4.70 m3 6.36 m3 8.40 m3 11.00 m3
Net weight 1600kg 2000kg 2800kg 3200kg
Overall length 5600mm 5600mm 6850mm 6850mm
Spread unit SPC4500-1 SPC4500-1 SPC4500-2 SPC4500-2
Hopper length 2876mm 2976mm 3916mm 4016mm
Hopper width 1800mm 2000mm 2000mm 2200mm
Loading height, min. 2020mm 2215mm 2385mm 2627mm
Loading height, max. 2520mm 2815mm 2885mm 3447mm
Minimum width, outside wheels 1700mm 1750mm 2250mm 2350mm
Maximum width, outside wheels 2600mm 2700mm 2800mm 2900mm
Biggest possible wheel diameter: Ø 1600mm Ø 1850mm Ø 2100mm Ø 2100mm



Technical data:


K105 bogie
Capacity 9.00 m3
with hopper extension, 23cm 11.00 m3
with hopper extension, 50cm 14.00 m3
Net weight 5500kg
Overall length 7200mm
Spread unit SPC4500-2
Hopper length 4016mm
Hopper width 2200mm
Loading height, min. 2750mm
Loading height, max. 3136mm
Minimum width, outside wheels 2750mm
Maximum width, outside wheels 2850mm
Biggest possible wheel diameter: Ø 1475mm



Technical data:


K135 K165
Capacity 12.00 m3 15.60 m3
with hopper extension, 23cm 14.90 m3 18.95 m3
Net weight 6500kg 6800kg
Overall length 8695mm 8695mm
Spread unit SPC4500-2 SPC4500-2
Hopper length 5696mm 5846mm
Hopper width 2200mm 2500mm
Loading height, min. 2800mm 2950mm
Loading height, max. 3000mm 3000mm
Minimum width, outside wheels 2750mm 2750mm
Maximum width, outside wheels 2900mm 2900mm
Biggest possible wheel diameter: Ø 1675mm Ø 1675mm



Technical data:


K105XE K135XE K165XE
Capacity 9.00 m3 12.00 m3 15.60 m3
Capacity with 23 cm hopper extension 11.00 m3 14.90 m3 18.95 m3
Capacity with 50 cm hopper extension 14.00 m3 – –
Net weight
Overall length
Hopper length 4016mm 5696mm 5846mm
Hopper width 2200mm 2200mm 2500mm
Loading height, min. 2627mm 2800mm 2950mm
Loading height, max. 3447mm 3000mm 3000mm
Minimum width, outside wheels 2350mm 2750mm 2750mm
Maximum width, outside wheels 2900mm 2900mm 2900mm
Biggest possible wheel diameter: Ø 1675mm Ø 1675mm Ø 1675mm
Bogie No Yes Yes



Technical data:


K105XE/SC K135XE/SC K165XE/SC
Capacity 9.00 m3 12.00 m3 15.60 m3
Capacity with 23 cm hopper extension 11.00 m3 14.90 m3 18.95 m3
Capacity with 50 cm hopper extension 14.00 m3 – –
Net weight
Overall length
Hopper length 4016mm 5696mm 5846mm
Hopper width 2200mm 2200mm 2500mm
Loading height, min. 2627mm 2800mm 2950mm
Loading height, max. 3447mm 3000mm 3000mm
Minimum width, outside wheels 2350mm 2750mm 2750mm
Maximum width, outside wheels 2900mm 2900mm 2900mm
Biggest possible wheel diameter: Ø 1675mm Ø 1675mm Ø 1675mm
Bogie No Yes Yes
