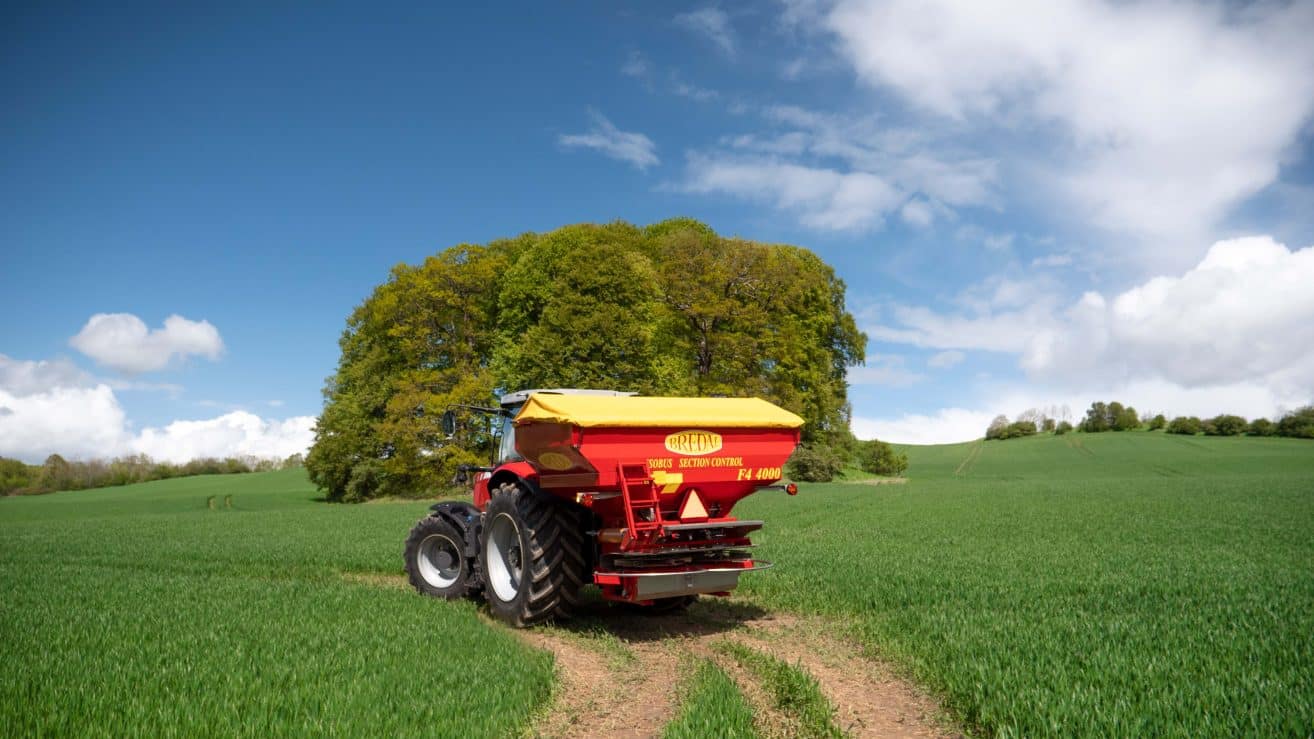

Bredal Gödningsspridare

F-Serien gödningsspridare från Bredal.

F2 och F4 är burna spridare 1500-4000 liter.

F8 och F10 är bogserade spridare 5,7 – 11,6 kubik

Kategorier: Lantbruksmaskiner, Växtskydd & Gödselspridare

eller

Kontakta en säljare nära dig



Technical data:


F2 1500 F2 2500 F2 3000 F2 3200 F2 4000
Capacity 1,500 litres 2,500 litres 3,000 litres 3,200 litres 4,000 litres
Spread unit SPC4500-1 SPC4500-1 SPC4500-1 SPC4500-1 SPC4500-1
Hopper length 1520mm 1520mm 1520mm 1520mm 1520mm
Hopper width 2400mm 2400mm 2400mm 3000mm 3000mm
Loading height* 1480mm 1745mm 1870mm 1950mm 2080mm
Net weight from 825 kg**

* The loading height is measured from a spreader standing on the ground
** The basic weight is an F2 1500 with no optional equipment – the weight, therefore depends on the model and the equipment selected.

Technical data:


F4 1500 F4 2500 F4 3000 F4 3200 F4 4000
Capacity 1,500 liters 2,500 liters 3,000 liters 3,200 liters 4,000 liters
Spread unit SPC4500-1 SPC4500-1 SPC4500-1 SPC4500-1 SPC4500-1
Hopper length 1520mm 1520mm 1520mm 1520mm 1520mm
Hopper width 2400mm 2400mm 2400mm 3000mm 3000mm
Loading height* 1500mm 1765mm 1890mm 1970mm 2100mm
Net weight from 950kg**

* The loading height is measured from a spreader standing on the ground
** The basic weight is an F4 1500 with no optional equipment – the weight, therefore depends on the model and the equipment selected.

Technical data:


F8 F10
Capacity 5.70 m3 6.60 m3
with hopper extension, 23cm 7.50 m3 8.60 m3
with hopper extension, 50cm 11.60 m3
Net weight 3200kg 3800kg
Overall length 6600mm 6600mm
Spread unit SPC4500-2 SPC4500-2
Hopper length 3916mm 4016mm
Hopper width 2000mm 2200mm
Loading height, min. 2475mm 2385mm
Loading height, max. 2975mm 3155mm
Minimum width, outside wheels 2250mm 2250mm
Maximum width, outside wheels 2800mm 2800mm
Biggest possible wheel diameter: Ø 2100mm Ø 2100mm
